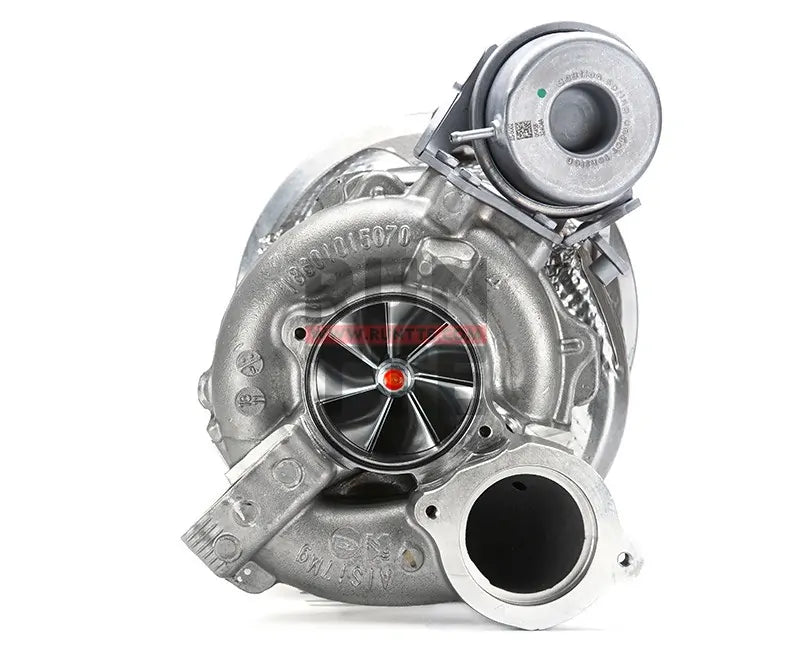

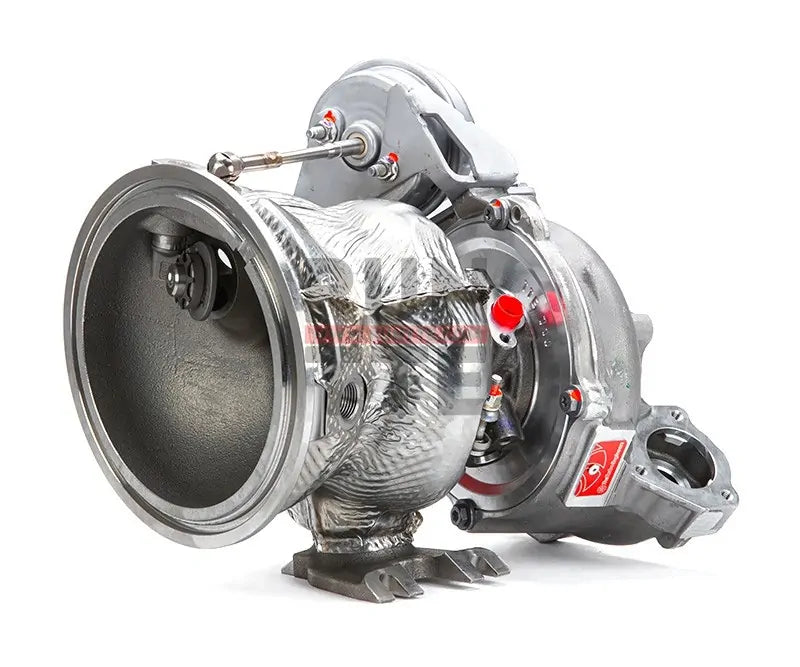

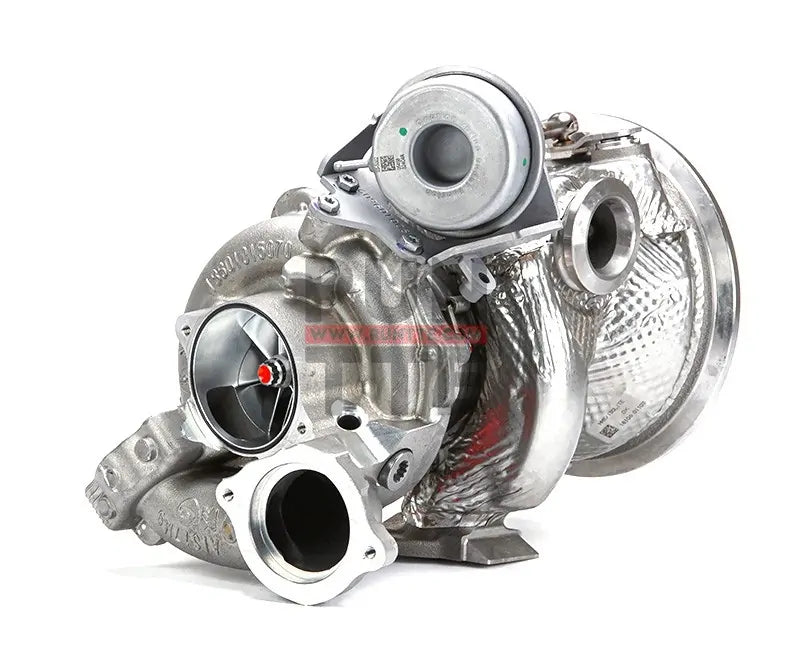

The TTE810 Turbocharger for the B9/B9.5 Audi EA839 3.0 TFSI is the latest hybrid evolution for the ultimate power, while still retaining fast-response, and plug & play ease of fitment. Utilizing the original turbocharger but for greater flow and power. Fitted with a large proven TTE billet compressor and a larger 9-blade turbine, this turbo provides more power and torque holding over TTE710 with a slightly slower spool & response. The TTE810 Turbocharger Upgrade requires upgraded software, such as 034Motorsport Dynamic+ Stage 3 ECU Tuning Software - Available Now!

PRODUCT DESCRIPTION:

Precisely balancing turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Great care is taken with all TTE turbochargers to achieve TTE’s balance standards. First, parts are balanced at slow speeds up to 2800RPM in multiple planes using TTE’s single parts machine, then components are assembled, and then the CHRA are dynamically balanced. Some applications are balanced up to 250,000 RPM in multiple planes using TTE’s in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

FEATURES:

  • Original BorgWarner Turbocharger Base Unit
  • TTE Billet Milled compressor 7+7 BLADE 66MM Inlet
  • TTE 9 Blade oversize High-Flow Low Mass Turbine
  • Plug and Play Installation
  • 7-Pad Thrust Bearing
  • Proven TheTurboEngineers Quality
  • Single Parts Finely Balanced then Components Assembled and Core High-Speed VSR Balanced
  • Supplied with a Balance Test Result Document
  • Made in Germany

TTE810 ECU TUNE SUPPORTING MODIFICATION REQUIREMENTS

To safely optimize the use of the TTE810 Hybrid Turbocharger on your B9/9.5 Audi S4, S5, or SQ5, 034Motorsport recommends the following modifications:



STAGE REQUIRED MODIFICATIONS RECOMMENDED MODIFICATIONS
Stage 3/3+ TTE810 91/93:

Stage 3 TTE810 E60-E70/E85 Pump:

Stage 3+ TTE810 E60-E70/E85 Pump:



Make Model Years Chassis Engine
Audi S4 2018+ B9 3.0 TFSI
Audi S5 2018+ B9/B9.5 3.0 TFSI
Audi SQ5 2018+ B9/B9.5 3.0 TFSI
