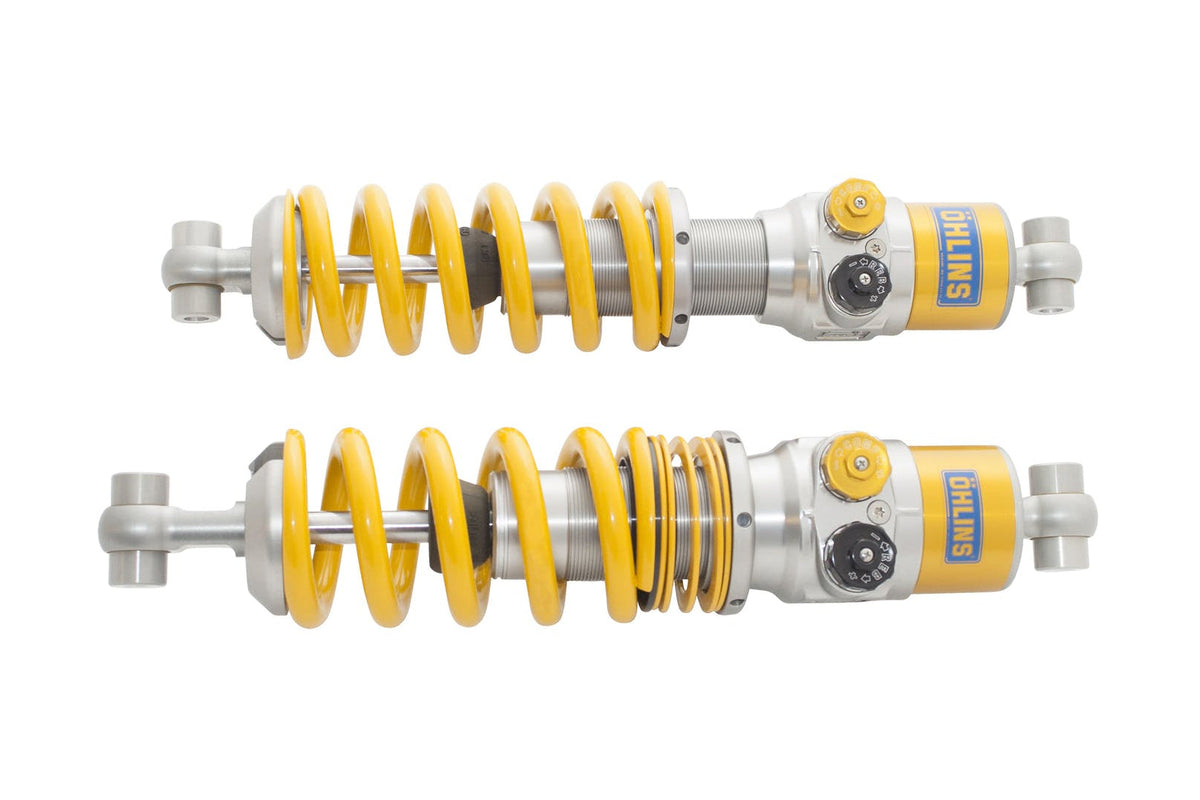

The Öhlins TTX Pro Coilover System for the first-generation Audi R8 (Type 42) brings race-developed suspension technology to one of the most capable platforms of its era. Built around Öhlins' TTX — Twin Tube eXtreme — technology, the kit delivers high-resolution damping control rooted in Öhlins' active programs in Formula 1, IndyCar, and MotoGP.
TTX technology uses a twin-tube damper architecture in which an inner working tube and outer reserve tube manage fluid flow with exceptional efficiency. Separate compression and rebound adjusters provide fully independent control over each damping phase, allowing precise tuning for track conditions, tire compound, or driving preference. The system is upgradeable to three or four-way adjustability for advanced setup work.
Öhlins' temperature-compensating design ensures consistent damping output as fluid temperatures rise during extended track sessions. Handling behavior remains predictable and repeatable regardless of thermal load — a critical requirement for the sustained high speeds the R8 generates.
Ride height adjustment operates independently from spring preload, enabling precise rake and corner-weight tuning without compromising spring characteristics or reducing usable suspension travel.
Product Details
- SKU: AUV MS00S1
- Öhlins TTX (Twin Tube eXtreme) technology
- 2-way independent adjustment: separate compression and rebound knobs
- Upgradeable to 3-way or 4-way adjustability
- Spring rates: 60/120/140 N/mm front, 60/140/140 N/mm rear (as specified)
- Separate ride height adjustment independent of spring preload
- Twin-tube damper construction
- Rebuildable and serviceable dampers
- Designed for serious track and race use
Front Suspension Features
- TTX twin-tube damper with independent compression and rebound adjustment
- Spring preload adjustment
- Ride height adjustment via threaded lower mount
- High spring rate configuration for track-level cornering loads
Rear Suspension Features
- TTX twin-tube damper with independent compression and rebound adjustment
- Spring preload adjustment
- Independent ride height adjustment
- High spring rate configuration matched to the R8 platform
Vehicle Applications
- Audi R8 (42)
Technical Resources
- Mounting Instructions — Öhlins Auto Shock Absorber, Audi R8 (AUV MS00) Front
- Mounting Instructions — Öhlins Cancellation Kit 35020-17
- Owner's Manual — Öhlins TTX46CS / TTX36
Notes
- Suspension components are non-returnable once installed
- This system does not function with the factory magnetic ride or electronic damper control system — an Öhlins cancellation kit (35020-17) is required to suppress dashboard warnings
