Our complete solution to lift your G-Class 2002-2018 4 inches. We have developed these adjustable reservoir shocks with King.
1. W463 Chassis 100mm (4 inches) Suspension Lift Springs
Springs are ISO 9001 certified and TUV approved and are crafted from a special spring steel to ensure premium quality and performance. The springs are also shot-peened which increases their life by over 150%. Designed with progressive rates for more comfortable ride while lifting the vehicle with optimum offroad performance
2. King Adjustable Shocks Eurowise Spec
We've teamed up with King to design these G-Class specific shocks for our 100mm lift kits. These are not off the shelf King Shocks. We have optimized the amount of up and down travel on the G-Class chassis. While most guys are selling off the shelf shocks only designed for 2" lifts and stuffing a 4" lift spring and maxing out the shocks travel. These are designed for maximum efficiency for 100mm (4 inch) lifts.
*Heat shield requires modifications to clear piggy back hose for reservoir.
3. Eurowise Built G-Wagen (W463) Chassis Front & Rear Track Bars
They utilizes a double adjuster so you don't have to remove the arm each time to adjust the bar. All the other ones we've seen on the market are just single adjusters and it's a PITA if you've ever tried aligning these yourself. Taking it on and off and rechecking the alignment specs each time is a chore. It comes equipped with Stiffer Polyurethane bushings and The tubing is DOM Mandrel bent in the same fashion as OE.
4. Eurowise W463 Lift Radius Arms
When lifting a G Wagen having proper caster is a MUST! Driving a lifted G Wagen even with 2 inch lift becomes less stable and harder to control at higher speeds. Unfortunately, there's no factory adjustments on G Wagens to fix this. We developed this replacement radius arm (control arm) and greatly improved it over OE specifications.
Sway bar mounts are welded on and also built in headlight level brackets which aren't found on our competitors arms. We've decreased the radius chassis mount angle to make installation easier and reduce the stress on the radius arm under extreme conditions. These radius arms will add up to 5 degrees caster on 4 inch lifts.
5. Eurowise Extended Brake Lines
Our brake lines are built from stainless braided hose that exceed OEM life. DOT approved fittings and compression fittings will last you a lifetime. All fittings are OEM fitment so retaining clips are reused. Longer lines are needed during high flex situations.

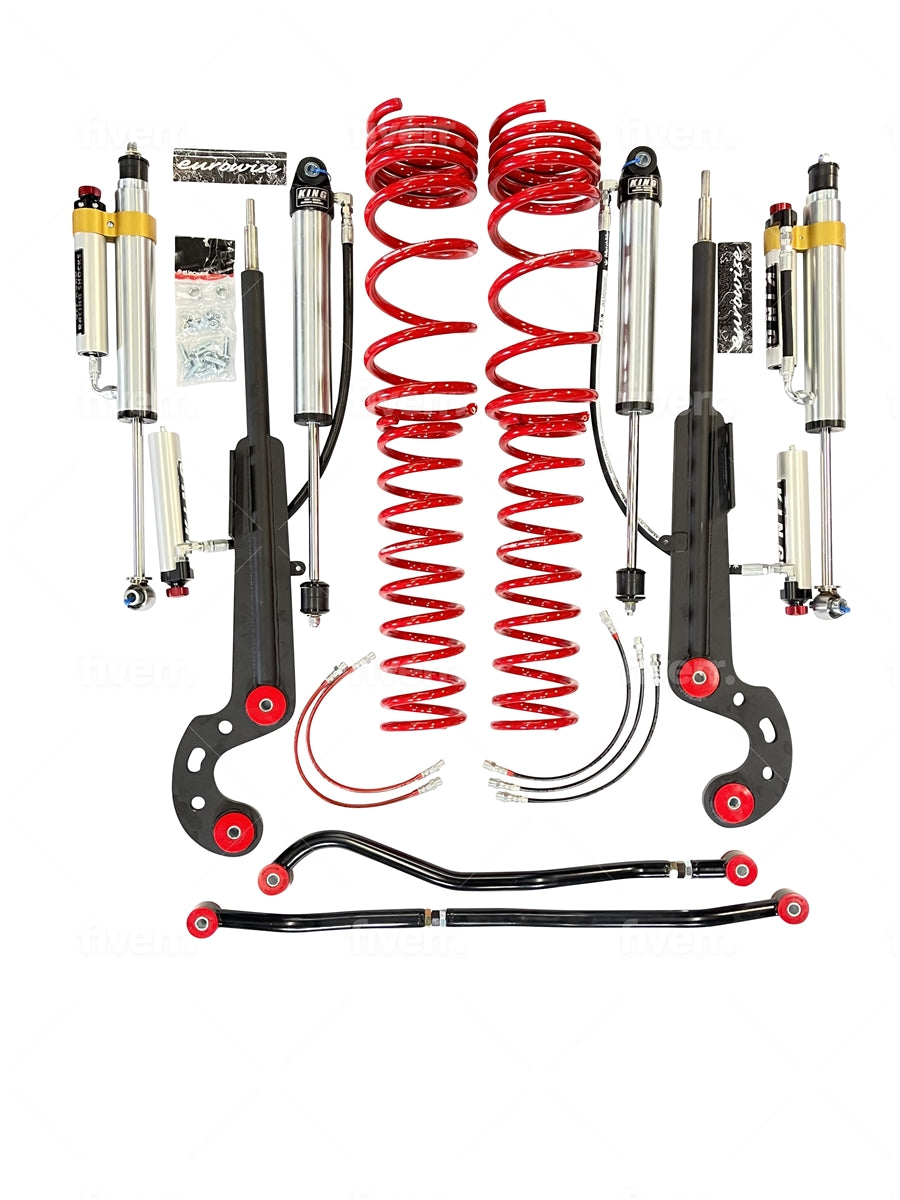

Product Includes:
- Qty. 4 100mm Eurowise Lift Springs
- Qty. 4 King 2.5 Adjustable Shocks
- Qty. 2 Front & Rear Panhard Bars
- Qty. 2 Eurowise Radius Caster Arms
- Qty. 5 Eurowise Extended Brake Lines (2 front & 3 rear)
Product Fitment/Applications:
- For All Mercedes G Wagon W463 W461 W460
- 2002 to 2009 G500
- 2009 to 2015 G550
- 2011 to 2012 G55
- 2013 to 2016 G63
- 2016 to 2018 G65
ATTENTION G63 OWNERS USING KING SHOCK OPTION ONLY
For 2013–2018 G550 (non-AMG) models and all 2012-and-older G-Class models, only minor wheel-well trimming is needed for proper fitment.
However, 2013–2018 G63 AMG models require a more significant modification: the upper secondary driver-side bracket on the frame must be removed entirely to accommodate these shocks.
If you have a G550, G500, or G55 AMG, only light trimming is required.
If you have a G63, the bracket removal is mandatory.
It was previously believed that this major modification was required on all 2013–2018 models, but further testing confirms that only the G63 AMG needs this level of frame alteration.
