ABOUT THE PRODUCT:
The biggest advantage to upgrading your OEM Alternator Belt and Pulley setup to our JHM 6-Rib setup is the added longevity, durability, and robustness that you get from increasing the width of and adding an extra rib to the belt. On top of all this, the lips on the JHM 6-rib Pulleys are almost 3 times taller than stock! This will make it virtually impossible for you to throw a belt - no matter how hard you drive it! The extra rib increases the grip the belt has on the pulleys without increasing - or even decreasing - the overall tension of the belt. This translates to LESS belt slip with the same tension. The taller ribs will practically bulletproof your pulley setup by keeping the belt from coming off for just about ANY reason since these pulleys were purpose built for the JHM Supercharger kit. When we upgraded to a 6-rib belt and pulley setup, we were already ahead of OEM Audi engineers. They also upgraded the belt setup on the 3.0T Supercharged V6 to a 6-rib setup as well! Makes you wonder about the 5-rib based Supercharger kits out there and how much abuse or boost they can really handle.
- B8-S5 4.2L OEM Crank Pulley: 7.0 lbs
- B8-S5 4.2L OEM Alternator Pulley: 1.9 lbs
- Total weight: 9.7 lbs
- JHM B8-S5 4.2L 6-Rib, Lightweight Crank Pulley: 2.3 lbs
- JHM B8-S5 4.2L 6-Rib, Lightweight Alternator Pulley: 0.6 lbs
- Total weight, JHM 6-Rib, Lightweight Setup: 2.9 lbs
- JHM 6-Rib, Lightweight versus OEM B8-S5 4.2L Setup: 6.8 lbs or over a 70% weight reduction!!!

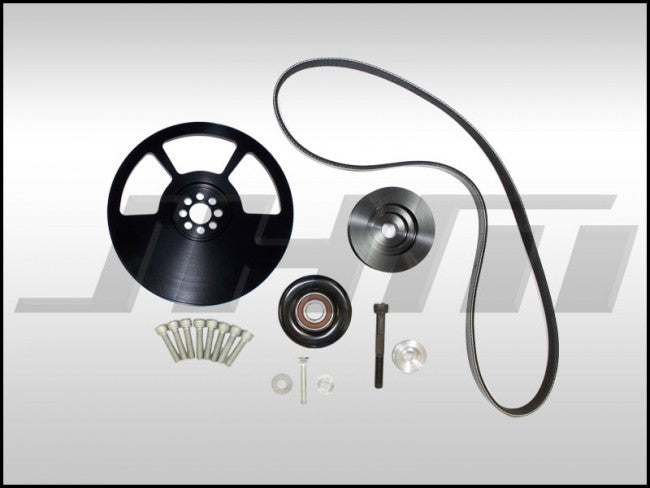

- 1x JHM 6-Rib Lightweight Crank Pulley
- 1x JHM 6-Rib Lightweight Alternator Pulley
- 1x Gates 6-Rib Belt (High quality, made in USA)
- 1x HD 6-Rib Idler Pulley (replaces OEM Idler Pulley)
- 1x JHM B8-S5 4.2L Tensioner Spacer Bushing Kit (includes hardware)
- 8x Crank Pulley Bolts
- 2x Tensioner Bolts - Longer than stock to accommodate Spacer Kit
- 1x Shoulder Bolt for Tensioner adjustment lockdown
- The B7-RS4 has a similar installation procedure. To view them, please click HERE
- One bolt hole on your stock crank pulley has a dowel in it that must be removed and inserted into the JHM pulley. Once this dowel is installed in the JHM 6-Rib, Lightweight Crank Pulley, the pulley can only be installed in one way. Torque all of the crank pulley bolts to 18 ft-lbs in a star pattern. We also recommend applying loctite to these bolts.
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Audi | S5 | B8-B8.5 (2008-2017) | 4.2l V8 32v FSI |
