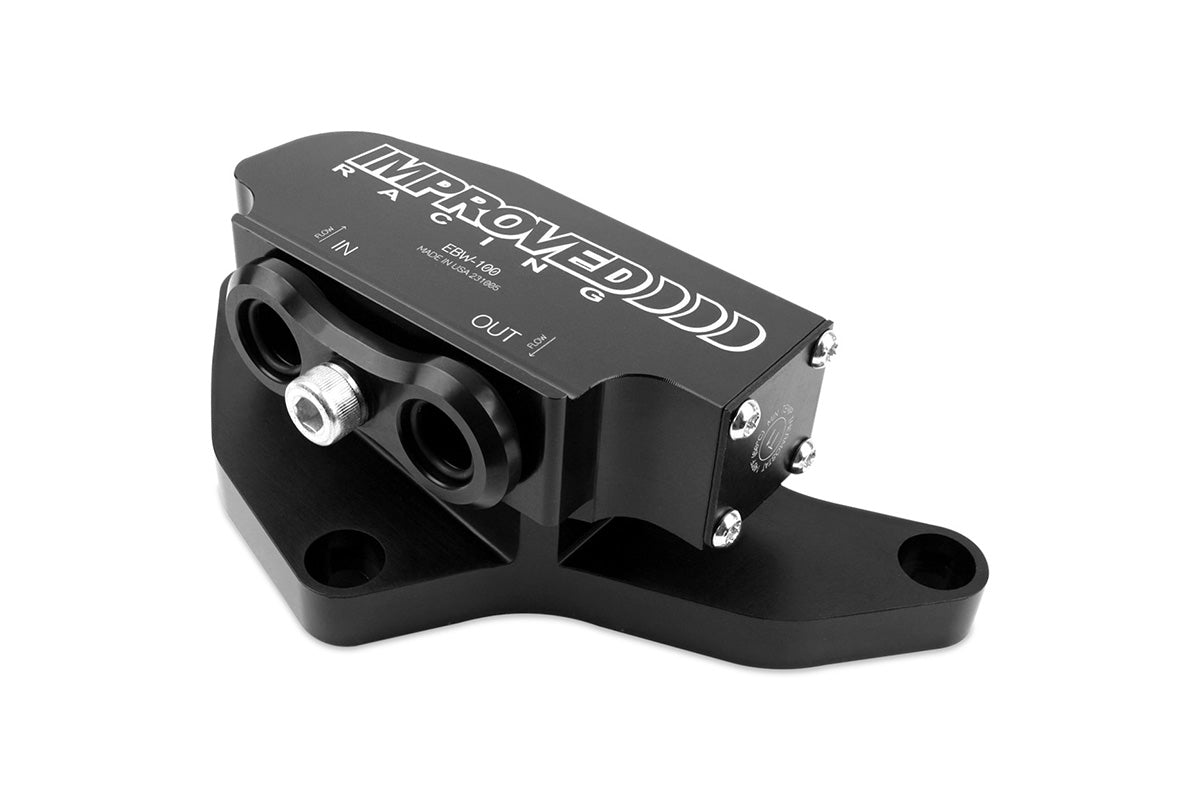

Improved Racing BMW Oil Cooler Thermostat (180F)
- Description
- Fitment
- Refund Policy
Precise Oil Temperature Control for Your BMW
Upgrade your BMW N20, N26, N51, N52, N53, N54, N55, and S55 engine's oil temperature control with Improved Racing's high-performance oil cooler adapter.
Designed to address flaws in the factory's restrictive oil cooler adapter and faulty internal flow control valve, this upgrade ensures precise oil temperature control.
Improved Racing's thermostat provides quick engine warmup, prevents overcooling, and delivers full oil cooling capacity on demand. Trusted by professional race teams around the globe, Improved Racing's thermostats have proven highly reliable, are backed by a lifetime manufacturers warranty, and are made in the USA.
Option to Use the Factory Oil Cooler and Lines
The optional factory oil line adapter allows you to use the factory oil cooler lines for a simple, plug-and-play installation. For maximum performance, the factory oil cooler and lines may be replaced with an aftermarket cooler and AN lines using the AN adapter fittings (-10AN line size is recommended).
Please note that some applications, such as most BMW SUV's, use a water-to-oil heat exchangers. These applications require plugging the coolant supply and return ports, as well as adding an external air-to-oil cooler and lines (factory or aftermarket). Please note the EBW-100 adapter cannot be used without an oil cooler.
Vehicle Fitment
Designed for a direct fit to any BMW engine equipped with oil filter housing part number 11428683206 or 11428642289 (circled in blue in the diagram below). The application is extremely large and covers most BMW cars and SUV's across all series!
You may view our complete application list, including chassis and engine code, in theEBW-100 Complete Application Reference filefound in the documentation section at the bottom of this page.
Compatible with all applications equipped with the following BMW engines:
- BMW N20 engines
- BMW N26 engines
- BMW N51 engines
- BMW N52 engines
- BMW N53 engines
- BMW N54 engines
- BMW N55 engines
- BMW S55 engines
Determining Your Application
Some applications require adding an external oil cooler. To determine your specific application, refer to the diagram below.
-
Direct-fit applications (green circle): If your vehicle is equipped with the oil cooler manifold circled in green, you can replace it with the EBW-100 and sometimes use the optional factory line adapter to retain the factory oil cooler (see additional notes on variants below). You may also replace your oil cooler and/or lines with aftermarket AN lines to improve performance with any of the three variants below.
-
Variants:There are three variants of the factory thermostat housing:
- The first variant has factory lines exiting the bottom of the factory housing, and uses an M8 screw inserted from the bottom. The EBW-100 is a direct bolt on for this application using the factory lines with the optional factory oil line adapter (EBW-100-98).
- The second common variant has factory lines exiting the bottom, but uses an M6 screw that is inserted from the top to retain the factory lines. To use the factory lines on this variant, the M6 hole in the center of the factory line flange must be drilled out to clear the provided M8 screw. If using aftermaket lines, the EBW-100 will work without any modifications.
- The third common variant has factory lines exiting the top of the factory housing. The EBW-100 cannot be used with factory lines in this case. You must use aftermarket AN lines. Improved Racing is developing a new adapter for this application, which will be available soon.
-
Variants:There are three variants of the factory thermostat housing:
-
Applications requiring the addition of an oil cooler (red circle):If your vehicle is equipped with the water-to-oil cool circled in red, you will need to perform these additional modifications:
- Cap off the coolant feed and return ports at the source.
- Install an OEM BMW air-to-oil cooler and lines, or install an aftermarket air-to-oil cooler and aftermarket AN lines.
Warning:A cooler must always be equipped. Do not cap off the inlet and outlet ports of the EBW-100. This will result in the complete blockage of oil flow to your engine!
Temperature Rating Specifications
| Part Number | Typ. Stabilization Temp | Activation Temp | Full Flow Temp |
|---|---|---|---|
| EBW-100-T4 | 180°F (82.2°C) | 180°F (82.2°C) | 203ºF (95ºC) |
Specifications
| Port Size |
|
| Construction |
|
| Parts Included |
|
| Country of Manufacture |
|
| Warranty |
|
