IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T

SKU: IEINDA2
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
IE Turbo Inlet Pipe for Audi B9 RS5 & RS4 2.9T
$393.24
Availability:
  • Description
  • Fitment
  • Refund Policy

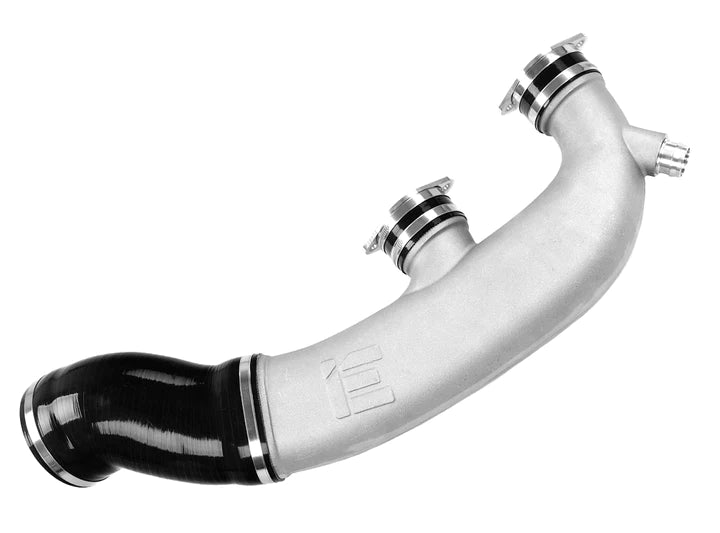

The IE Turbo Inlet pipe for your Audi B9 RS5 or RS4 feeds your twin-turbocharged engine an unrestricted supply of airflow. This turbo inlet pipe is an upgrade to our existing 2.9T air intake system and provides a complete high-flow path from the intake to the turbochargers. Enjoy innovative features including the impressive flow gains, premium quality aircraft-grade aluminum casting, and the massive size that fills up the engine bay with a stylish look. Fully upgrade your intake system and breathe free!

ADD UP TO
39.27% MORE FLOW

OVER STOCK

AIRFORCE GRADE
CAST ALUMINUM

PREMIUM CONSTRUCTION

DESIGNED TO SUPPORT
STOCK & HYBRID

TURBOCHARGERS

LEADING FEATURES

  • High-flow design -Up to 39.27% more flow over stock
  • Utilizes all engine bay space -Massive 3.2" inner diameter cross-section
  • Exceptional quality -Aircraft grade aluminum casting
  • Perfect Install -CNC machined with exacting tolerances
  • Designed for IE intake -Easy bolt-in upgrade with IE 2.9T Air Intake System

LET YOUR ENGINE BREATHE

Performance tunes and hybrid turbochargers add easy power to your Audi twin-turbo 2.9L engine; however, these upgrades demand more airflow. The factory-installed turbo inlet is a significant bottleneck in the stock air intake system that can restrict horsepower. IE's cast turbo inlet is engineered to maximize all available engine space to increase airflow for your turbochargers.

TAILORED FITMENT

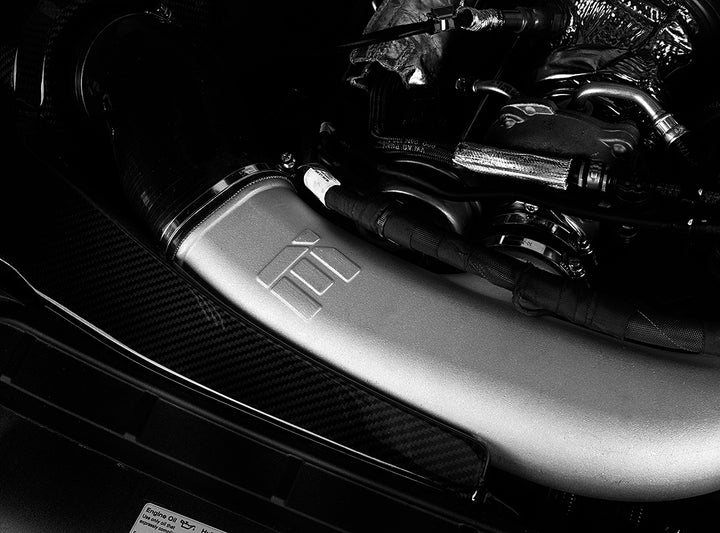

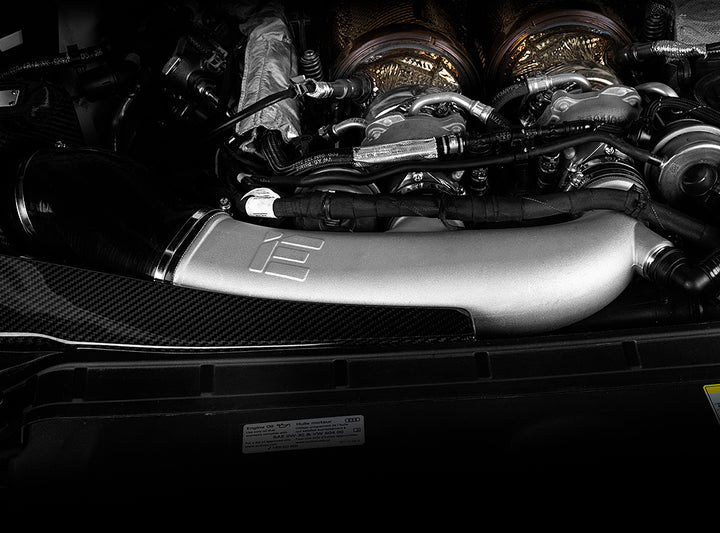

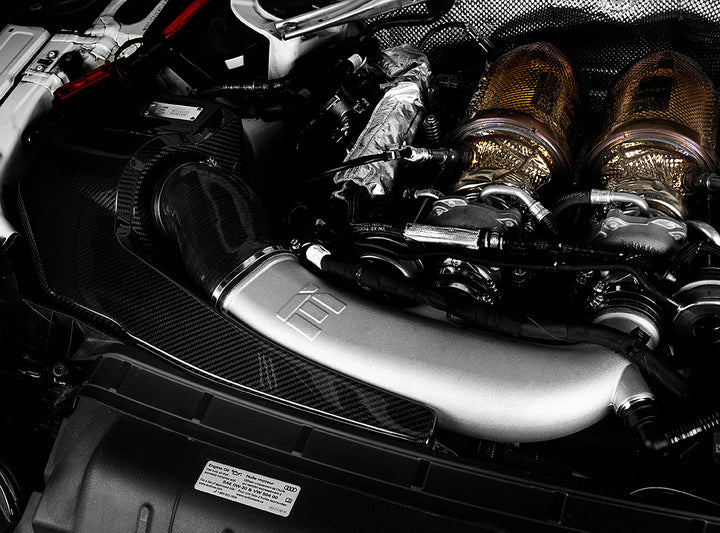

Maximizing flow in the constraints of the factory engine bay is the result of the turbo inlet size and shape. Our engineers use high-quality 3D scans and digital flow dynamic software to utilize every millimeter of space for a true-performance design. The result is a perfect fit, a stylish look, and a massive 3.2" effective inner diameter cross-section with an optimized flow path.

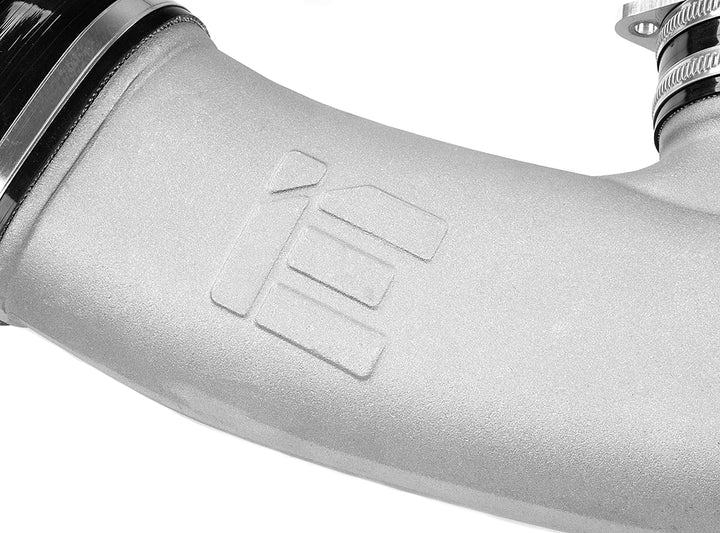

CAST ALUMINUM

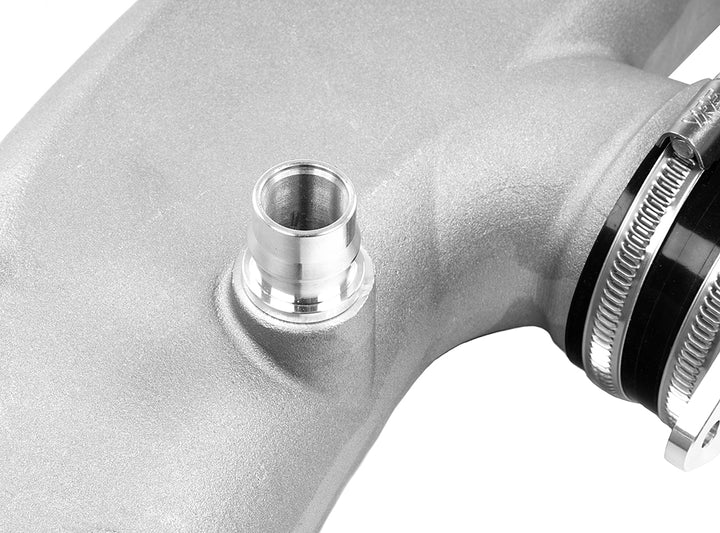

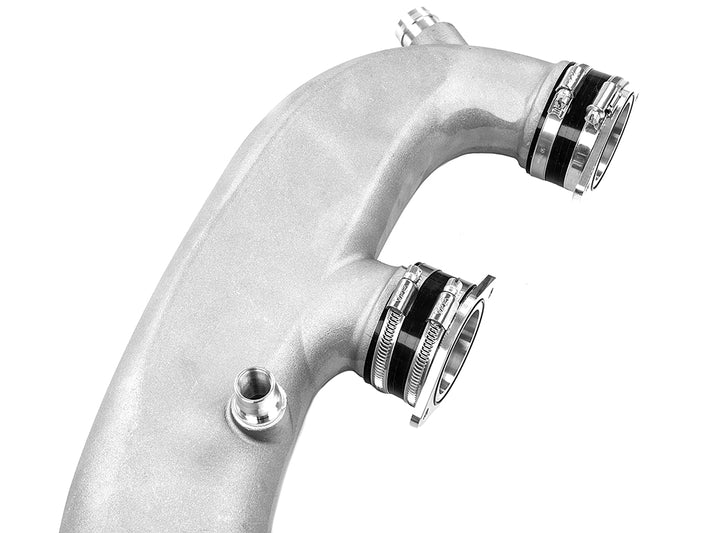

Our inlet design is manufactured from aircraft-grade aluminum to accomplish the unique bends and shapes required for the cleanest airflow path possible. The casting is then CNC machined to precise tolerances for a perfect fit without clearance issues or the risk of rubbing expensive factory hoses or lines.

PERFECT FIT WITH IE INTAKE

IE cast turbo inlet is the second step to upgrading your intake airflow and has been designed as a direct-install fit with an IE cold air intake system. This combination removes significant airflow restrictions and maintains the largest size possible from the intake to the turbocharger.

Non-IE brand intakes are not guaranteed to be a direct fit and may require custom modifications.

HYBRID TURBO READY

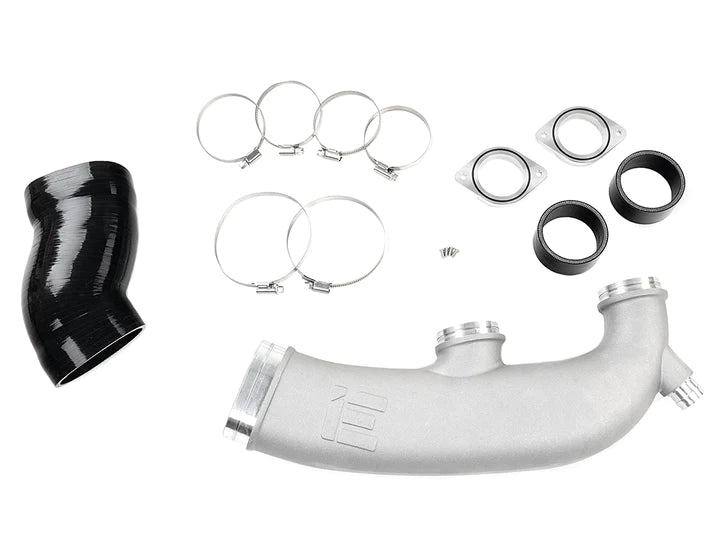

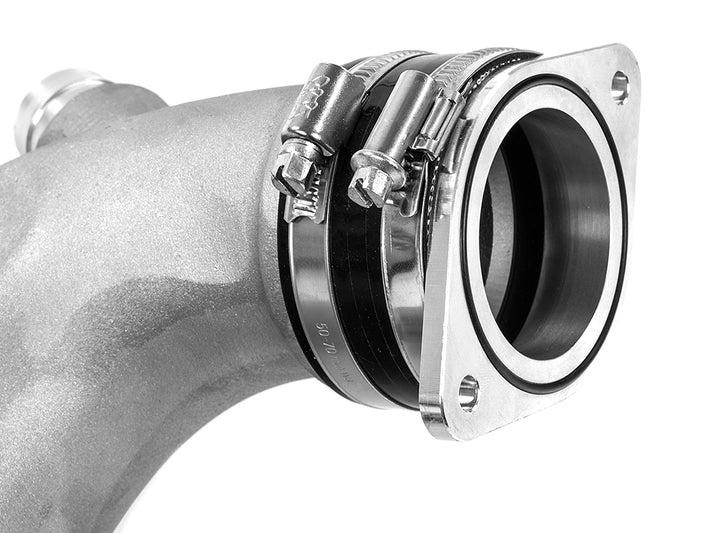

Designed to make installing hybrid turbochargers a simple bolt-in job, the CNC-machined and o-ring sealed adapter flanges are available for the stock turbos (included) or TTE720 aftermarket turbos (sold separately). These adapter flanges always adapt to the turbo inlet size to avoid introducing any restrictions and maintain the largest flow path possible.

TTE720 adapter flanges are currently in production and coming soon. Adapter flanges will be sold separately.


VEHICLE FITMENT GUIDE

MAKE MODEL YEAR ENGINE

AUDI

RS5

2018-2023 (B9)

2.9T Twin-Turbocharged

AUDI

RS4

2018-2023 (B9)

2.9T Twin-Turbocharged



FLOW TESTING

FLOW BENCH GRAPH

Back-to-back flow bench results show consistent CFM gains of up to 39.27% CFM over stock! This flow graph details our turbo inlet's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.

FLOW REPORT

The following report details the above graph proving the efficiency gain of our turbo inlet and intake system on the stock turbos.

-IN. H20 STOCK IE INTAKE IE INTAKE & INLET

-5

191 CFM

244 CFM

259 CFM

-10

278 CFM

352 CFM

375 CFM

-15

346 CFM

435 CFM

462 CFM

-20

405 CFM

505 CFM

536 CFM

-25

452 CFM

570 CFM

602 CFM

-30

499 CFM

624 CFM

661 CFM

IE INTAKE & IE INLET

MAXIMUM INCREASE:

+35.6% @ -5 in. H20

HYBRID FLOW REPORT

This flow report represent IE’s intake and inlet upgrades with TTE720 hybrid turbos.

-IN. H20 STOCK IE INTAKE & INLET

-5

191 CFM

266 CFM

-10

278 CFM

384 CFM

-15

346 CFM

472 CFM

-20

405 CFM

550 CFM

-25

452 CFM

619 CFM

-30

499 CFM

678 CFM

IE INTAKE & IE INLET

MAXIMUM INCREASE:

+39.27% @ -5 in. H20

The above gains are a result of various design details:

  1. The 3.2" cross-section inner diameter increases volume for improved airflow efficiency.

  2. The smooth reduction turbo flanges provide a low-turbulence transition from the turbo inlet pipe to the turbo compressor housings.

  3. The unique inlet shape provides an optimized path to quickly channel air from the intake to the turbochargers.

To learn more about these features, click the design tab above.

EASY INSTALLATION


Engineered for a perfect and no-fuss fit, the installation process is quick and straightforward using basic hand tools.

Intake install time: 1-2 hours
