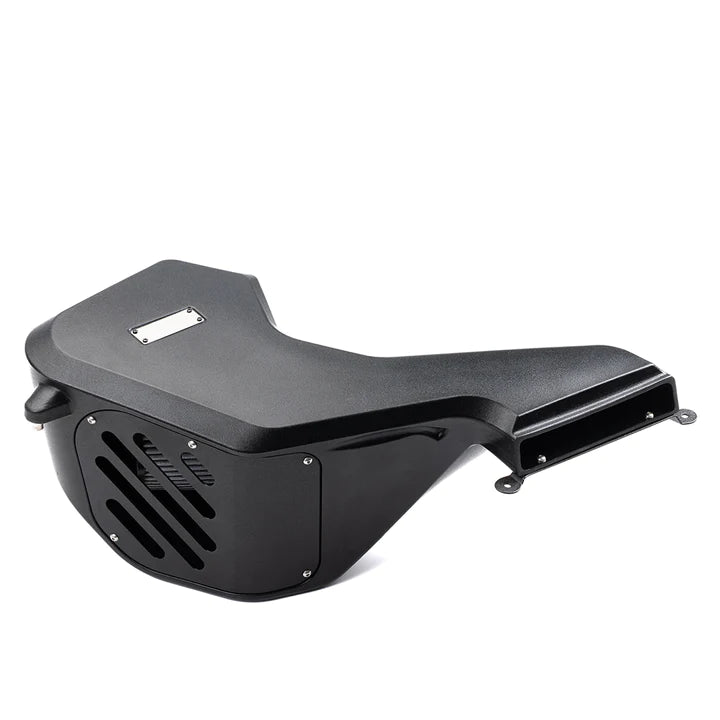

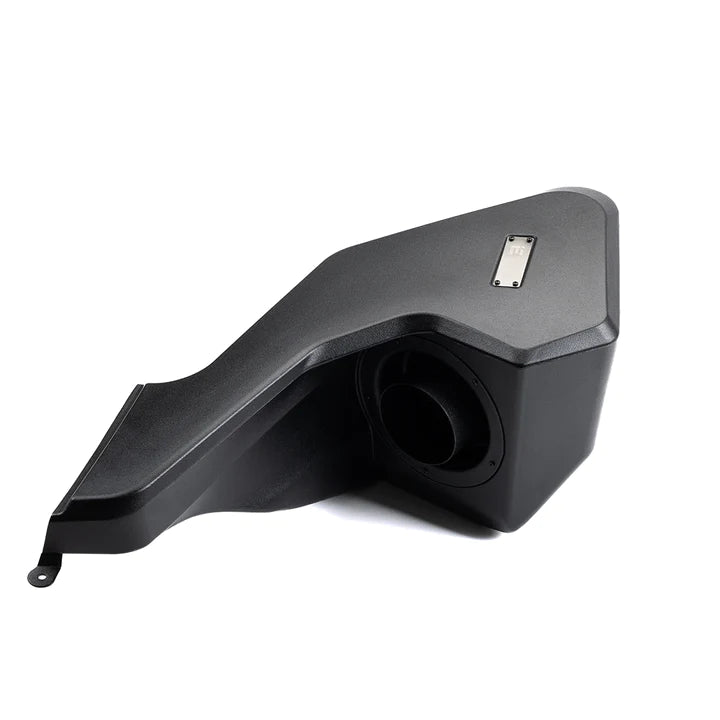

IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T

SKU: IEINCZ5
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
IE Polymer Intake System For Audi B9/B9.5 (80A) Q5 2.0T
$650.74
Availability:
  • Description
  • Refund Policy

The IE Polymer Air Intake System delivers performance, sound, and style to your Audi B9/B9.5 (80A) Q5 2.0T engine. Our specialty rotomold construction maintains low intake air temps and brings an elevated look to your engine bay. Gain easy power from the massive filter, high and low-pressure inlets, large internal volume, and built-in velocity stack. Add airflow gains and addicting sound without sacrificing quality.

PREMIUM QUALITY
POLYMER

CONSTRUCTION

POWER YOU CAN FEEL
10-20HP GAINS

WITH ECU TUNING

FLOW OPTIMIZED
VELOCITY STACK

HIGH-FLOW DESIGN

LEADING FEATURES

  • High-flow design -5" air filter, velocity stack, & larger volume
  • Perfect fit -Factory style mounts for reliable & easy installation
  • Unlimited air supply -High/low-pressure zones for any power goal
  • Aggressive engine sounds -Releases hidden turbo & engine notes


DESIGN DETAILS

POWER, SOUND, & STYLE

SPECIALTY POLYMER

Plastic desn't mean cheap. This cold air intake is manufactured from a high-quality rotomold procedure that produces a superior polymer material with consistent wall thickness, strong corners, and excellent heat resistance. Enjoy a premium intake design without compromise.

PERFORMANCE ENGINEERED

The internal volume of the intake and its complex shapes are the results of application-specific engineering for the Audi SUV platform. Every inch has been performance-designed to feed your turbocharger with the most airflow possible.

ENJOY YOUR ENGINE

The factory airbox is designed to mute all engine and turbo sounds. When upgrading to an IE intake system, you will instantly become addicted to the new turbocharger spool, engine throttle, and diverter valve symphony under the hood. Your Q5 will pull harder and make you smile with with the new refined and exiciting engine sound.

SEAMLESS AIRBOX

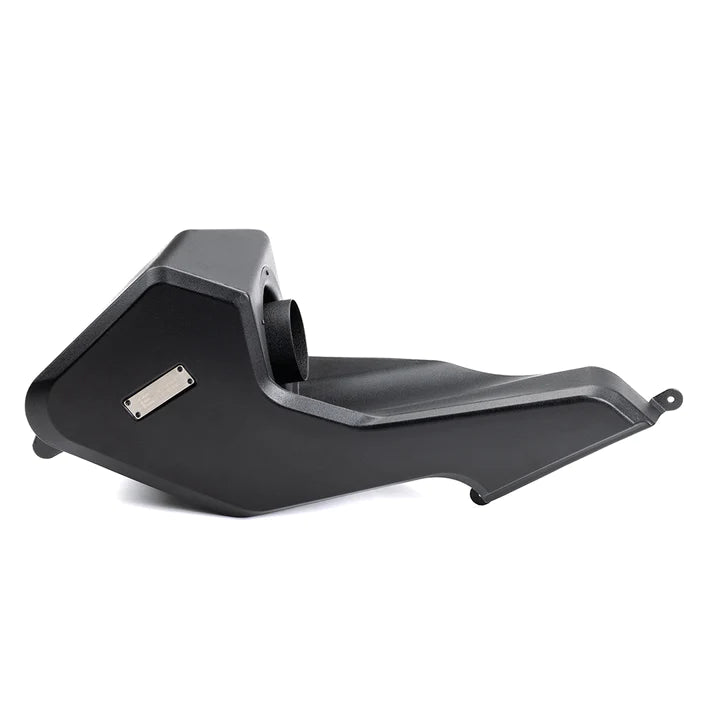

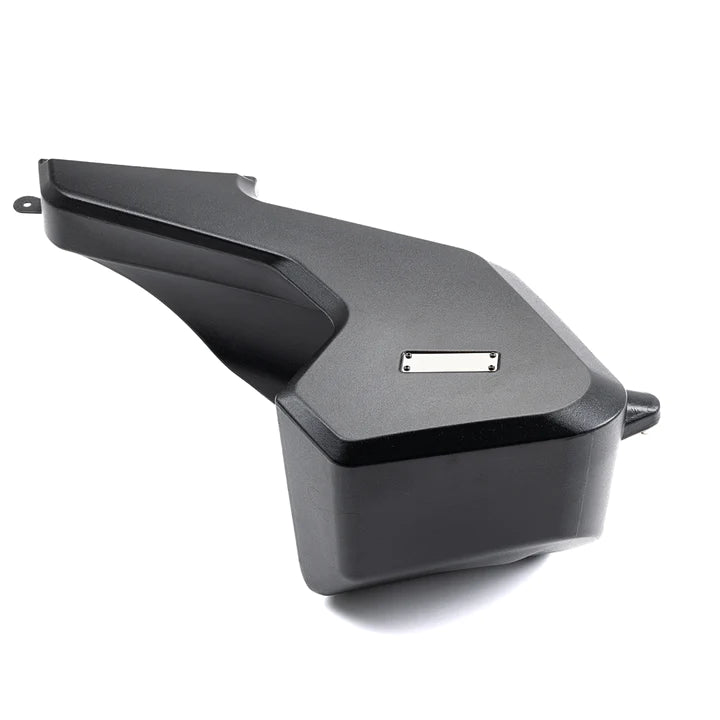

Our unique 1-piece airbox offers a seamless and beautiful look without chances of air leaks, finicky installation, rubbing noises, or parts loosening over time, common with multi-peace airbox designs.

BUILT-IN VELOCITY STACK

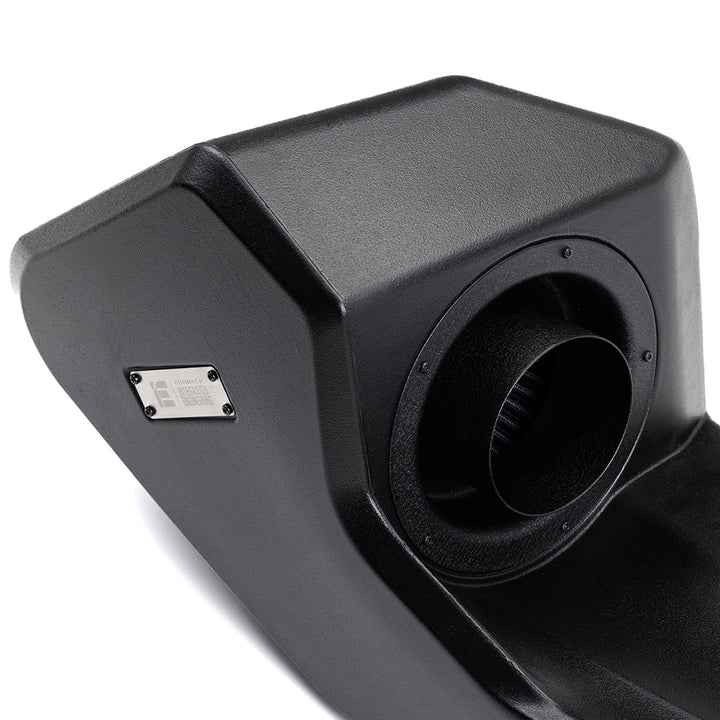

The built-in velocity stack smoothly reduces airflow from the massive 5" air filter down to the turbo inlet with excellent laminar properties. This transition creates a very high inertia flow from the huge filter with very low drag or power-robbing turbulence.

MULTIPLE PRESSURE ZONES

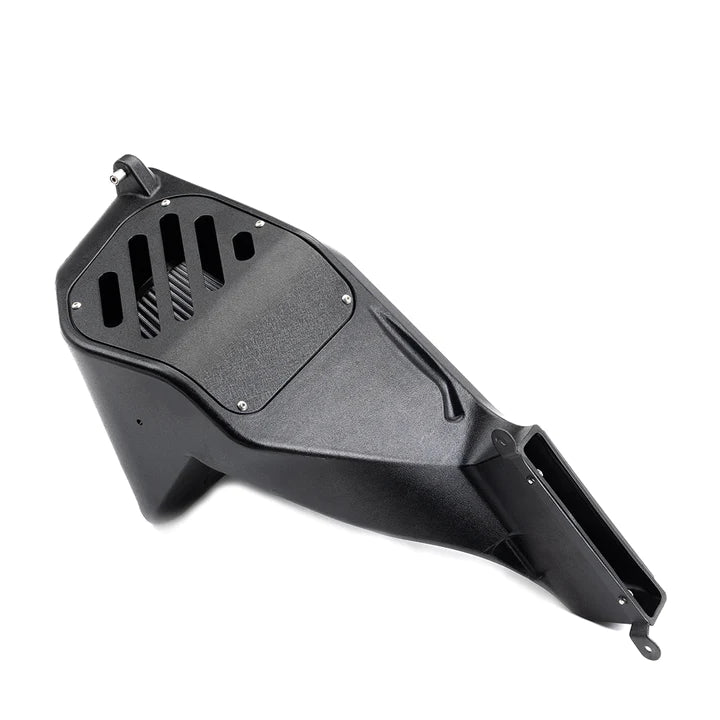

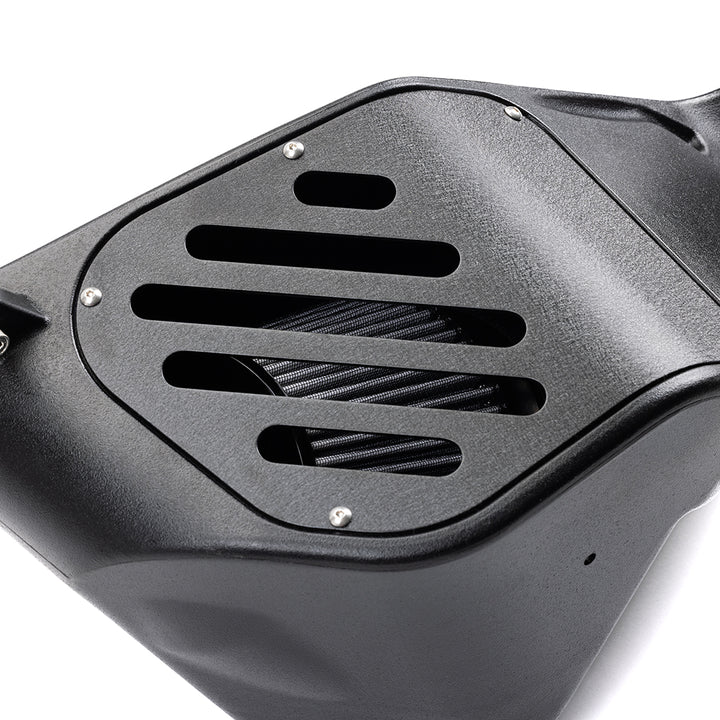

The intake takes advantage of multiple air supply avenues to support any power level. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the filter plate louvers pull extra required air from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.

PRECISION FIT

3D scanning tools are leveraged to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. These high-resolution scans provide a digital environment that allows our engineers to take advantage of all available space while ensuring a perfect fit.


VEHICLE FITMENT GUIDE

MAKE MODEL YEAR ENGINE

AUDI

Q5

2018-2023 (B9/B9.5 80A)

2.0T Turbocharged

NOTE: Does not fit hybrid engines or ROW models equipped with a MAF sensor, please verify before ordering.

POWER RESULTS


Every inch of IE's intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 10-20HP when combined with ECU engine tuning!

FLOW BENCH TESTING

The proof is in the testing. Back-to-back flow bench results show constant and consistent gains of up to 134 CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.

FLOW REPORT

The following report details the above graph proving the efficiency gain of our performance intake system on the stock turbo.

-IN. H20 STOCK INTAKE IE INTAKE

-5

217 CFM

266 CFM

-10

316 CFM

389 CFM

-15

390 CFM

490 CFM

-20

456 CFM

572 CFM

-25

510 CFM

644 CFM

-30

559 CFM

703 CFM

MAXIMUM INCREASE:

+26.76% @ -25 in. H20

The above gains are a result of various design details:

  1. The 5" air filter surface area and increased air volume improve turbo efficiency.

  2. The internal velocity stack provides a low-turbulence transition from the filter to the inlet.

  3. High & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.

To learn more about these features, click the design tab above.

INSTALLATION

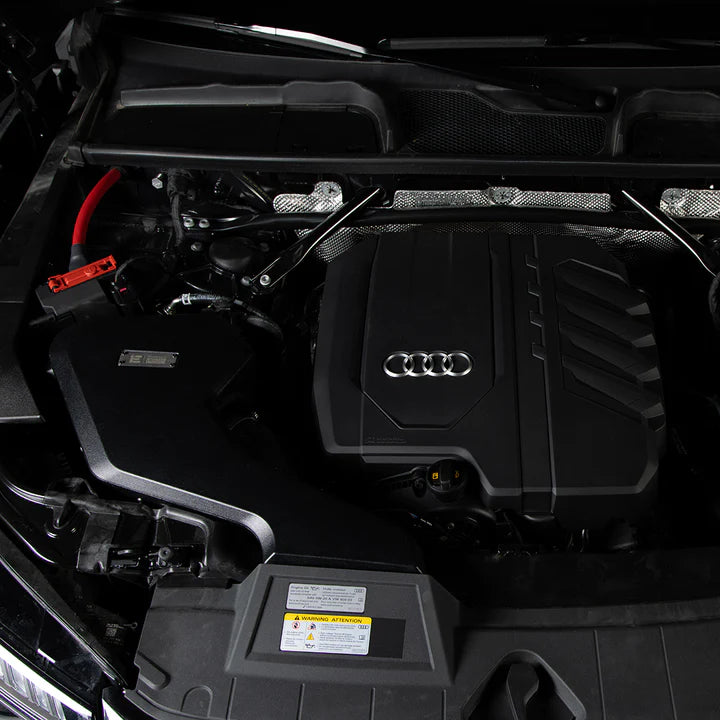

The installation process is quick and straightforward using basic hand tools. The entire airbox system utilizes factory-style mounts that ensure a perfect and hassle-free fit.

Intake install time: 20-40 minutes
