Eventuri

Eventuri BMW G42 2-Series B48 Black Carbon Intake System

SKU: EVE-G20B48-V2-INT-G42
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
Eventuri BMW G42 2-Series B48 Black Carbon Intake System
$1,819.99
Availability:
  • Description
  • Fitment
  • Refund Policy

The BMW G42 B48 Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the G42 2-Series, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental for engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IAT’s are kept to a minimum is for a fully sealed intake. This however, results in a restriction with only one stock air feed to draw air in from. During development we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore our sealed airbox also has a heat shield with gold reflective to minimize the radiative heat transfer from the exhaust manifold. In order to maximize volume we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally we use a custom made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.

The Eventuri Difference

The G42 B48 Eventuri system uses our Patented Carbon Fiber Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo. You can read more about the housing design and how it works HERE.



Fitment for the G42 218i 220i 230i

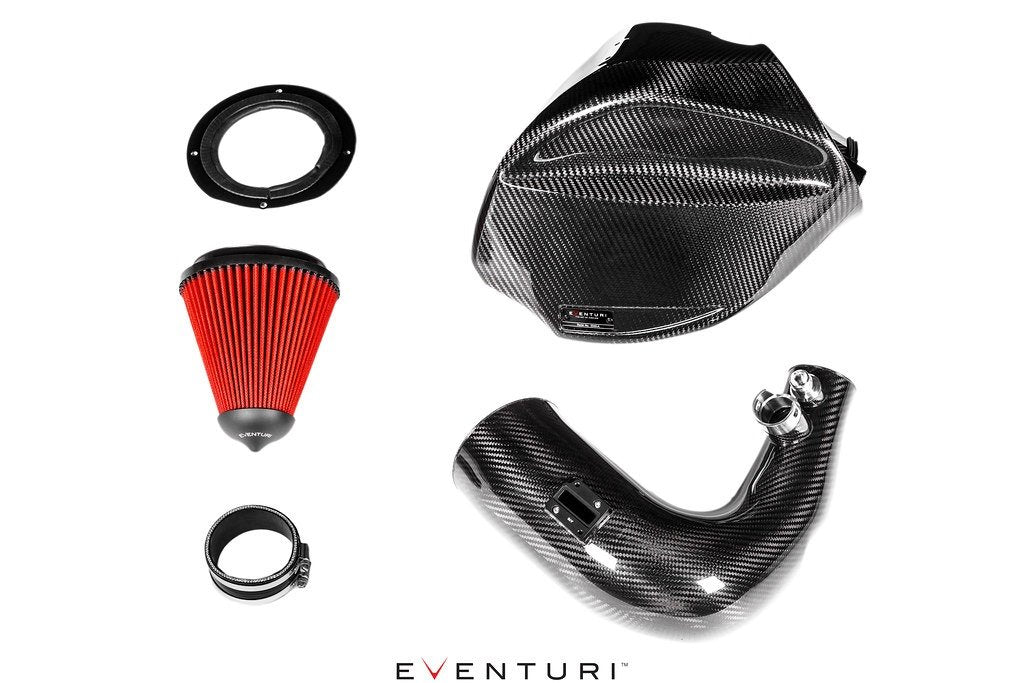

Each intake system consists of:

  • Carbon Fiber Airbox with Dual Feeds
  • Bespoke High Flow Dry Cone Filter
  • Carbon Fiber Inlet Tube
  • CNC Machined Temperature Sensor Mount
  • CNC Machined Breather adapters
  • Heat Shield with Gold Reflective Backing
  • Laser Cut Stainless Steel Brackets
  • Silicon Reducer with OEM Specification Clamps
