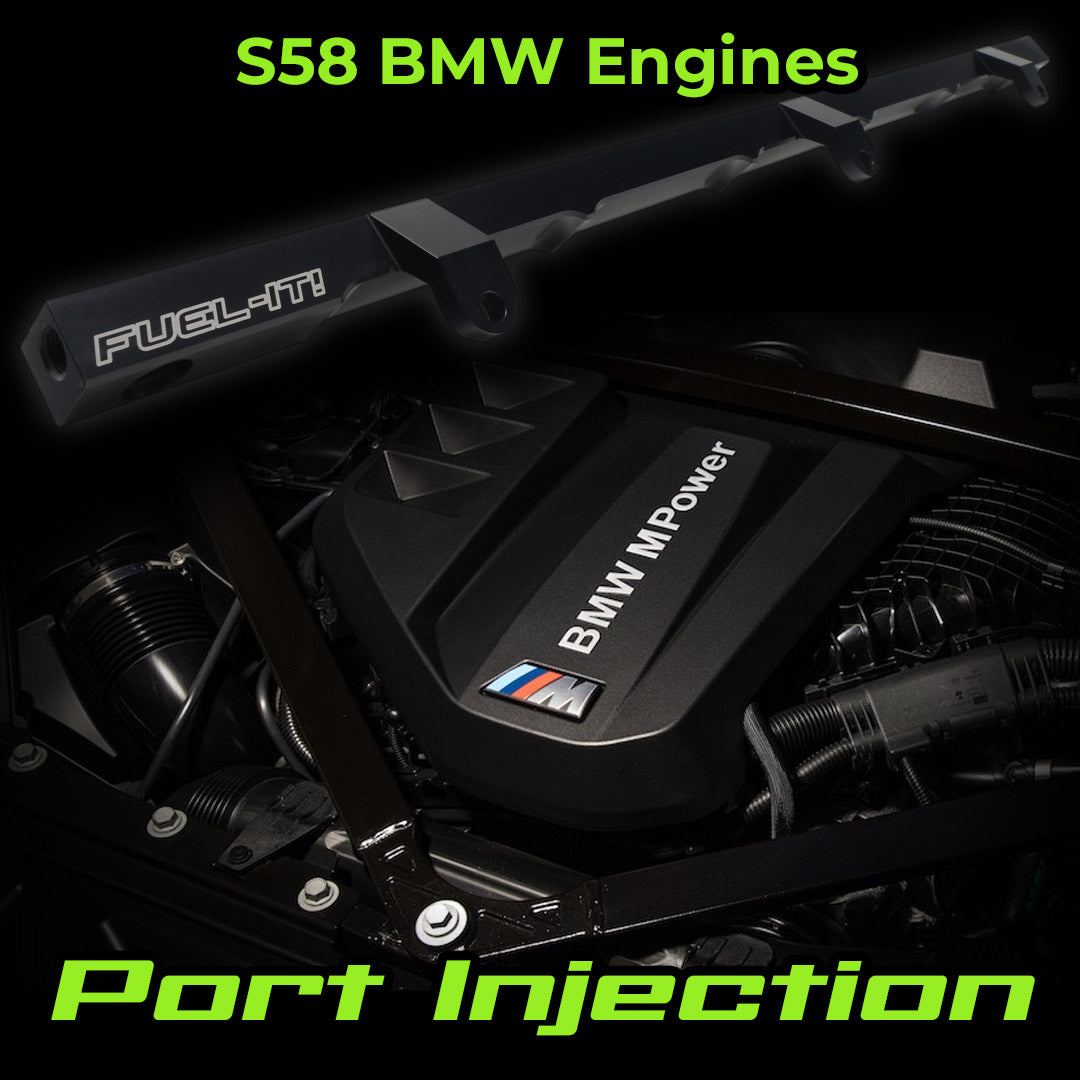

If you're making big power or running E85 with your 2020+ S58 powered BMW, you need this kit!
This is a complete plug & play kit to install port injection on your 2020+ S58 Equipped BMW in about 30 minutes.
What's Included in the basic kit:
(1) Fuel-It! S58 Billet Fuel Rail
(1) Stainless steel braided fuel line with black nylon sheathing to protect your other engine bay components
(1) Billet tee fitting for fuel supply that is compatible with stock fuel lines and our flex fuel kit.
(1) -6AN ORB fitting
(1) -6AN ORB plug
(2) 1/8" NPT plugs
(3) 14 x 1 Stainless steel screws to secure the rail to your manifold
(1) Injector installation jig
(1) 8 x 3/4" screw for the installation jig
(1) 21/64 drill bit to open the factory injector bosses
(1) Superlube®
Suggested optional accessories:
Injectors: Our kits use high quality Flow Matched DW or IDX Port 42mm Fuel Injectors. You can order them with the kit or supply your own injectors but you will need to add injectors for the kit to function. Injectors are available in 750cc, 950cc, and 1050cc flow ratings.
Port Injection Controller: You must use a controller to run the additional injectors. If you are running a JB4, then you will select the BMS port injection controller. If you are not running a JB4 and just running a flash or factory ECU, you will need to stand alone (flash only) controller.
Flex Fuel: If you are running ethanol mixes or E85, we highly recommend you run our flex fuel kit to integrate with the JB4 and to read your actual ethanol content. The content can vary greatly from station to station and fill up to fill up. If you already have one of our flex fuel kits installed, you can order the port injection kit and select "I already have your flex fuel kit" to receive the correct line from the ethanol sensor to the Tee fitting. The supplied lines with your original flex fuel kit will work but the line from the ethanol sensor to the HPFP is bit long once you add the Tee fitting.
S58 Vehicle Fitment
BMW M2
• 2023+ S58 G87 BMW M2
BMW M3
• 2021+ S58 G80 BMW M3
• 2021+ S58 G80 BMW M3 Competition
BMW M4
• 2021+ S58 G82 BMW M4
• 2021+ S58 G82 BMW M4 Competition
• 2022+ S58 G83 BMW M4 Convertible
BMW X3M
• 2020+ S58 F97 BMW X3M
• 2020+S58 F97 BMW X3M Competition
BMW X4M
• 2020+ S58 F98 BMW X4M
• 2020+ S58 F98 BMW X4M Competition
High performance DW or IDX 42mm fuel injectors come packaged in flow matched sets of six and are compatible with the Fuel-It!, Phoenix Racing, and other port injection kits.
IDX 1050cc: Up to 1100whp
1050cc Injector Dynamics ID1050X Fuel Injectors
OPTIONAL: Fuel-It! CANfuel Sequential Port Fuel Injection Controller
Save $100.00 When purchased with this kit.
Fuel-It! CANfuel allows your ECU to control up to 8 fuel injectors sequentially in addition to an ethanol content sensor, low fuel pressure sensor, extra pressure sensors, EGT probes, external fuel pumps, and much more. All using the same CANbus technology your ECU already uses to communicate with factory control modules!
Click here for more information on the Fuel-It! CANfuel Sequential
Port Fuel Injection Controller or to purchase separately.
