BMS Oil Catch Can for GEN2 B58 G05 X5 40i & G06 X6 40i BMW
- Description
- Fitment
- Refund Policy
Keep Oil Out of Your G Chassis GEN2 B58 X5/X6 BMW Air Intake System
It’s no secret that turbo BMW motors can suffer from oil control problems, allowing oil to blow through and coat the intercooler and charge piping. This buildup contaminates intake valves and the VANOS system, lowers effective octane, and degrades engine performance. The higher the boost, the more apparent these problems become.
The solution has finally arrived: the Burger Motorsports Oil Catch Can. While many catch cans exist, they fall short in critical areas. Some are mounted on the hot turbo side, preventing proper vapor condensation. Others use undersized hoses or excessive routing that restrict PCV flow and can cause crankcase pressure and sealing issues. Many feature ineffective or overly restrictive baffle systems, and some even vent crankcase gases to the atmosphere.
Burger Motorsports engineered this oil catch can kit from the ground up specifically for turbo BMW applications. It features 100% CNC machining with zero welding for a precision fit and long service life. The can is guaranteed for the life of the vehicle. Oversized hoses exceed OEM PCV diameter and maintain consistent flow throughout the system, eliminating horsepower-robbing crankcase pressure buildup.
The BMS oil separator retains a fully closed-loop factory PCV system, preventing vapor from escaping into the atmosphere. Carefully chosen mounting locations minimize hose length, improve efficiency, and maintain a stealth OEM-style appearance. Installation takes approximately 10 minutes, includes all required hardware, and is fully reversible. Empty the can during oil changes by unscrewing the base or using the drain plug. Made in the USA.
New transparent oil catch can base available as an option or sold separately as an upgrade here.
⚠️ The BMS silicone intake hose is required to install and use this catch can.
Works with the OEM intake or the BMS Billet Intake for 2019–2023 G Chassis BMW X5, X6, and X7 .
Features & Benefits
- Increases air intake efficiency
- Promotes engine longevity
- Non-clogging triple-baffle air/oil separation
- Free-flow, anti-restriction design
- Retains factory closed-loop PCV operation
- Large inlet and outlet with no tapering
- Stealth mounting
- Anodized black aluminum construction
- Made in the USA and guaranteed for life
- Service by unscrewing base every 3–6 months or using 1/8” NPT drain plug
- High-flow design eliminates crankcase pressure
- 16mm+ inlet and outlet exceeds OEM PCV sizing
- Precision CNC-machined from solid high-grade aluminum
Vehicle Fitment
- 2019–2023 G05 GEN2 B58 BMW X5 40i (including xDrive)
- 2021+ G05 GEN2 B58 BMW X5 45e (including xDrive)
- 2020+ G06 GEN2 B58 BMW X6 40i xDrive
Catch Can Dimensions & Specifications
- Height with lid: 4.4 in (111 mm)
- Can diameter: 2.5 in (63.7 mm)
- Lid length (back to nozzle): 4 in (101 mm)
- Nozzle outer diameter: 0.75 in (19.2 mm)
- Nozzle inner diameter: 0.669 in (17 mm)
- Can Fluid Capacity: Up to 5.5 fl oz (162.6 mL)

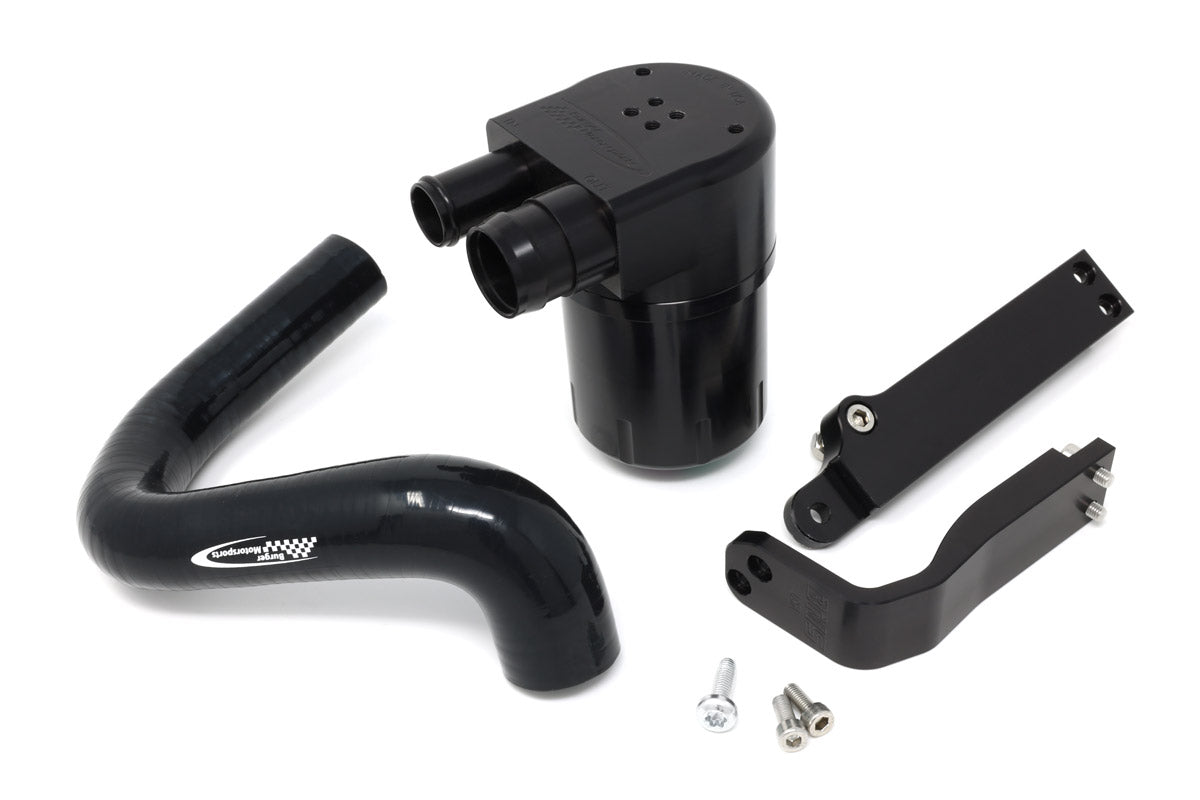

What’s Included
- (1) BMS G2x B48 oil catch can
- (1) Billet two-piece mounting bracket with hardware
- (1) B58-X5-OCC heavy-duty silicone hose
- (2) M5x0.8x12mm internal hex bracket-to-can screws
A mixture of oil, water, fuel, and sludge safely captured and kept out of the engine.
New transparent oil catch can base available as an option or sold separately here.
The transparent base allows quick visual inspection of oil level, contamination, and sludge buildup without opening the can.
⚠️ ATTENTION: The optional transparent can base is not suitable for use in regions where temperatures frequently drop to 32°F (0°C) or below.
