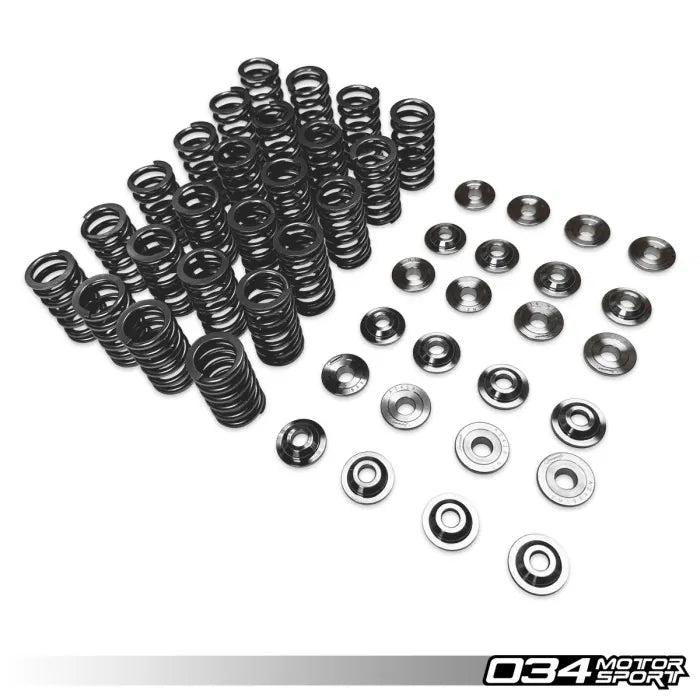

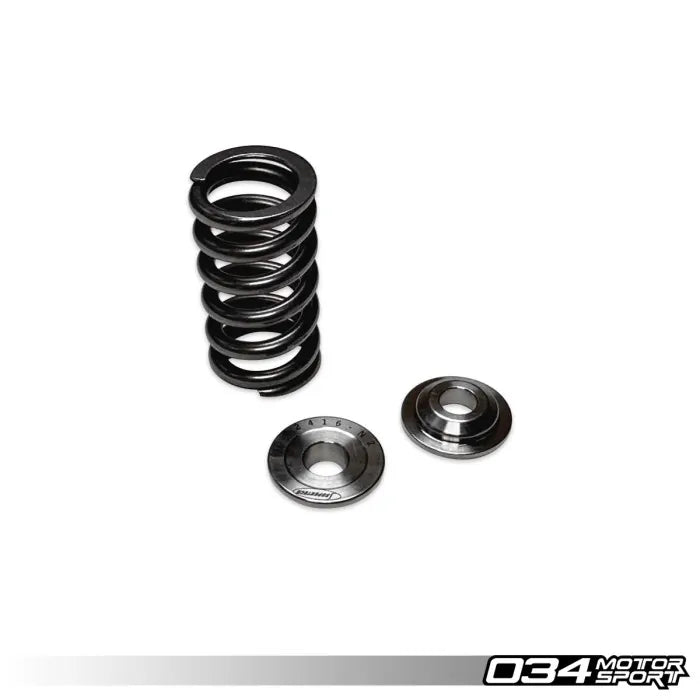

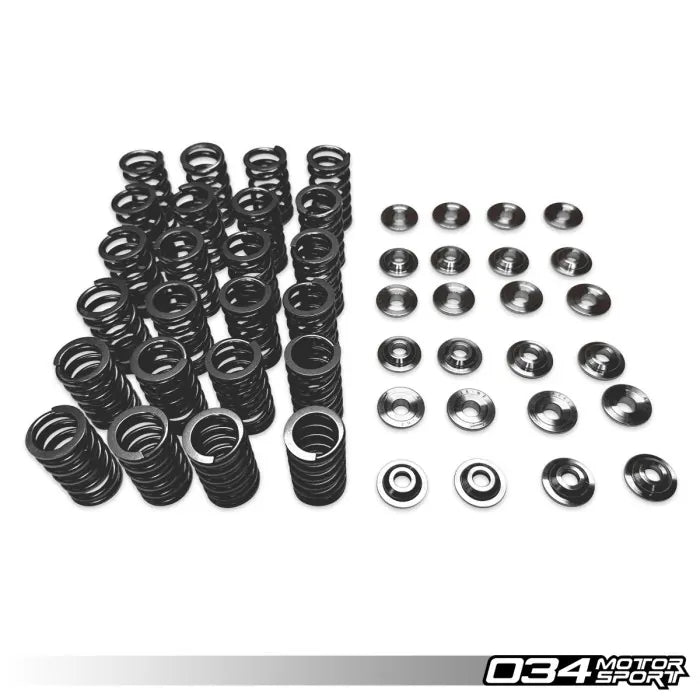

034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines

SKU: 034-201-8022
034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines
034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines
034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines
034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines
034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines
034 Motorsport Supertech Valve Spring & Titanium Retainer Set, Audi EA837 3.0T & EA839 2.9T/3.0T Engines
$1,140.26
Availability:
  • Description
  • Fitment
  • Refund Policy

The Supertech Performance Valve Spring & Retainer Set is designed for those looking to improve the powerband of their 3.0T Supercharged EA837 or 2.9T/3.0T Turbocharged EA839 engine past 7,200 - 7,600 RPM, safely. This kit takes a two pronged approach by increasing the spring rates meanwhile reducing the mass of the retainer, by using titanium. The use of titanium provides an adequate fatigue life to be acceptable for all but the highest mileage street use. In addition, the retainer allows a longer spring to further prevent coil bind and allow camshafts with higher lift than factory.

These will allow usage up to 8,000 RPM although we have used them for occasional use to 8,500 RPM on hydraulic lifters. More RPM is possible by converting to solid lifter buckets as there is plenty of spring rate, upgraded rods should be considered when revving over 8000 RPM as well.

PRODUCT DESCRIPTION:

The Supertech Performance Valve Spring & Retainer Set is designed for those looking to improve the powerband of their 3.0T Supercharged EA837 or 2.9T/3.0T Turbocharged EA839 engine past 7,200 - 7,600 RPM, safely. This kit takes a two pronged approach by increasing the spring rates meanwhile reducing the mass of the retainer, by using titanium. The use of titanium provides an adequate fatigue life to be acceptable for all but the highest mileage street use. In addition, the retainer allows a longer spring to further prevent coil bind and allow camshafts with higher lift than factory.

These will allow usage up to 8,000 RPM although we have used them for occasional use to 8,500 RPM on hydraulic lifters. More RPM is possible by converting to solid lifter buckets as there is plenty of spring rate, upgraded rods should be considered when revving over 8000 RPM as well.

FEATURES:

  • Performance Valve Springs Made with Premium Superclean Chrome Silicon Vanadium Steel Alloy for Higher Performance and Durability
  • Increased Spring Rate to Stretch the Powerband of the 3.0T/2.9T Engine Out Past 7,600 RPM, Safely.
    • NOTE: Above 7600RPM, Factory Rods Should Be Updated Unless Specified by the Tuner to be OK.
  • 6AL4V Grade Titanium Retainers for Reduced Mass, Helping to Prevent Valve Float
  • Allows up to 8,000 RPM (Occasional Use to 8,500 RPM on Hydraulic Lifters)
    • More RPM is Possible by Converting to Solid Lifter Buckets
  • Complete Set of 24 Springs and Retainers

SPRING DATA:

  • Seat Pressure - 73lbs @ 38.60mm (Intake), 85lbs @ 37.20mm (Exhaust)
  • Open (Lift) Pressure - 178lbs @ 10mm (Intake), 190lbs @ 10mm (Exhaust)
  • Max lift - 12.50mm (Intake), 11.00mm (Exhaust)
  • Spring Coil Bind - 24.90mm
  • Rate - 10.50lbs/mm
  • Spring Outer Diameter - 24.00mm
  • Spring Inner Diameter - 16.50mm

WHAT’S INCLUDED:

  • Single Springs - 24pcs
  • Titanium Retainers - 24pcs
